Presto 631377-02653 - M3x0.5 ROLL D371 6HX FCS TiN

Home Product Details Customer Reviews

Large View

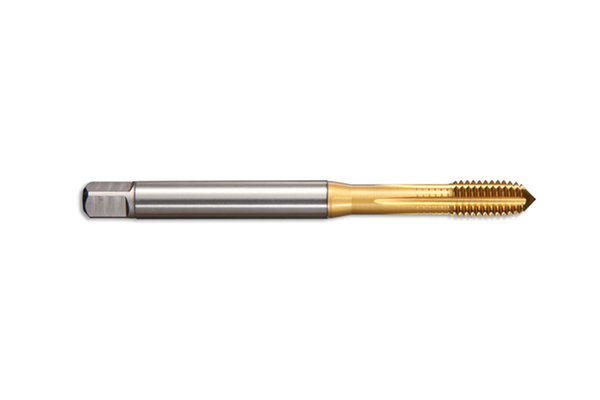

Presto 631377-02653 - M3x0.5 ROLL D371 6HX FCS TiN

FCS Type HSS-E Fluteless tap with a 2-4 thread lead. For roll tapping in materials with an elasticity of over 10% up to 900 N/mm2. Special attention is required to obtain the correct core hole size. Available with lubrication grooves for deeper threads over 2.5 x diameter and to produce a more accurate thread form.

Packaged In Quantities of: - 1

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - £4.95

Weight 0.005 kg

RRP £91.91

Our Price (Inc VAT)

£43.15

Ex VAT £35.96

You Save £48.76!

Attribute Name	Value
Barcode:	5011315086431
Product Group:	631377
Pack Qty:	1
Overall Length:	56mm
Weight:	0.005
Size:	M3 x 0.5
Flute Length:	5mm
Commodity Code:	82074010
Cutting Direction:	Right Hand
Manufacturing Standard:	DIN371
Shank Diameter	3.5
Shank Type:	Straight Shank
Finish Description:	Titanium Nitride Coated
Material Description:	HSSE PM
