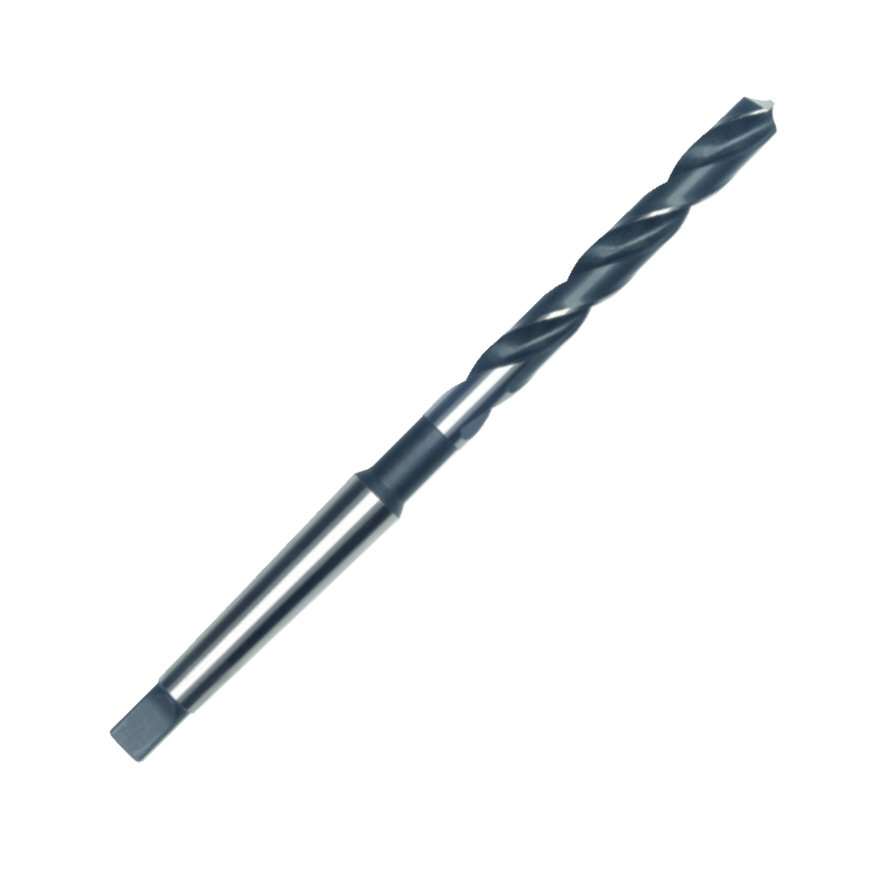

Presto 1100023.75 - 23.75mm HSS DIN345 MORSE TAPER SHANK DRILL

General-purpose drill, to drill steels with tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.

Design characteristics
Point grinding: cone relief point
Point angle: 118°
Web thinning: form A > 14 mm
Helix angle: normal
Web thickness: normal
Web taper: normal
Flute form: normal
Tolerance of dia.: h8

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - £4.95

Weight 0.5 kg

RRP £0.00

Our Price (Inc VAT)

£0.00

Ex VAT £0.00

You Save £0.00!

This item is currently Out of Stock.
Please contact us for details.

Attribute Name	Value
Helix angle:	Normal
Barcode:	5011315038928
Overall Length:	281mm
Weight:	0.6155
Size:	23.75mm
Flute Length:	160mm
Commodity Code:	82075060
Cutting Direction:	Right Hand
Manufacturing Standard:	DIN345
Shank Diameter	MTS 3
Shank Type:	Morse Taper Shank
Point Type:	118°
Finish Description:	Steam Tempered (Black Oxide)
Material Description:	High Speed Steel
