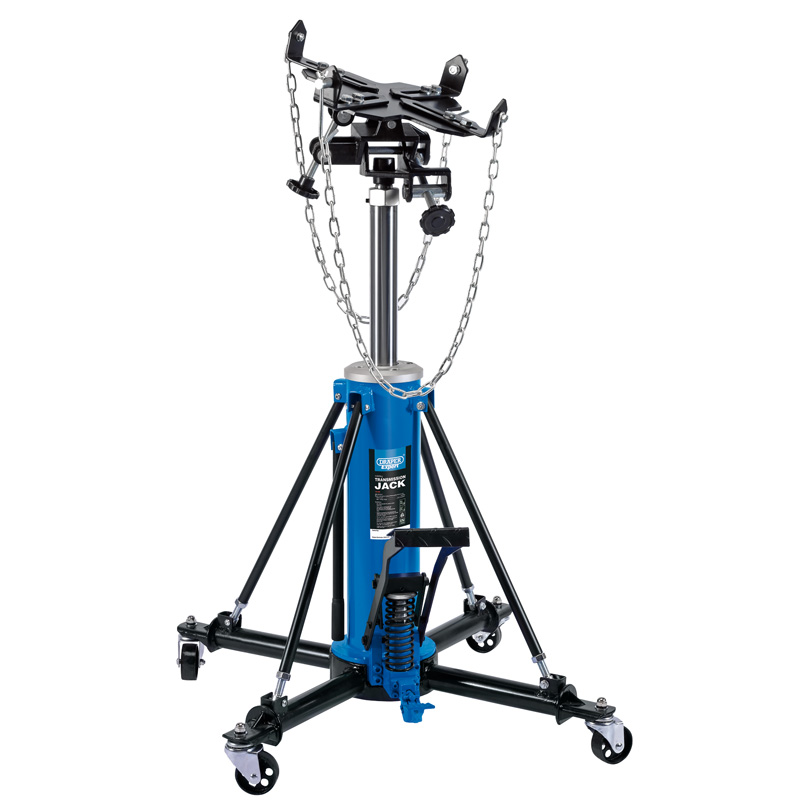

Draper 19788 (TJ1000-E) - Vertical Transmission Jack (1000kg)

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. The low entry height is designed to aid with reduced clearances and the jack is fitted with a safety overload valve for added user protection. Operated via twin foot pedals for hands free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The extra-large castors and side mounted handle aid positioning and increase manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side-to-side tilt aids the user further.

Model No: 19788
Capacity   1,000kg
Minimum height   875mm
Maximum height stage 1   1,240mm
Maximum height stage 2   1,910mm
Castor diameter   75mm
Base size   710 x 7
Manufactured to EN1494 Specification
