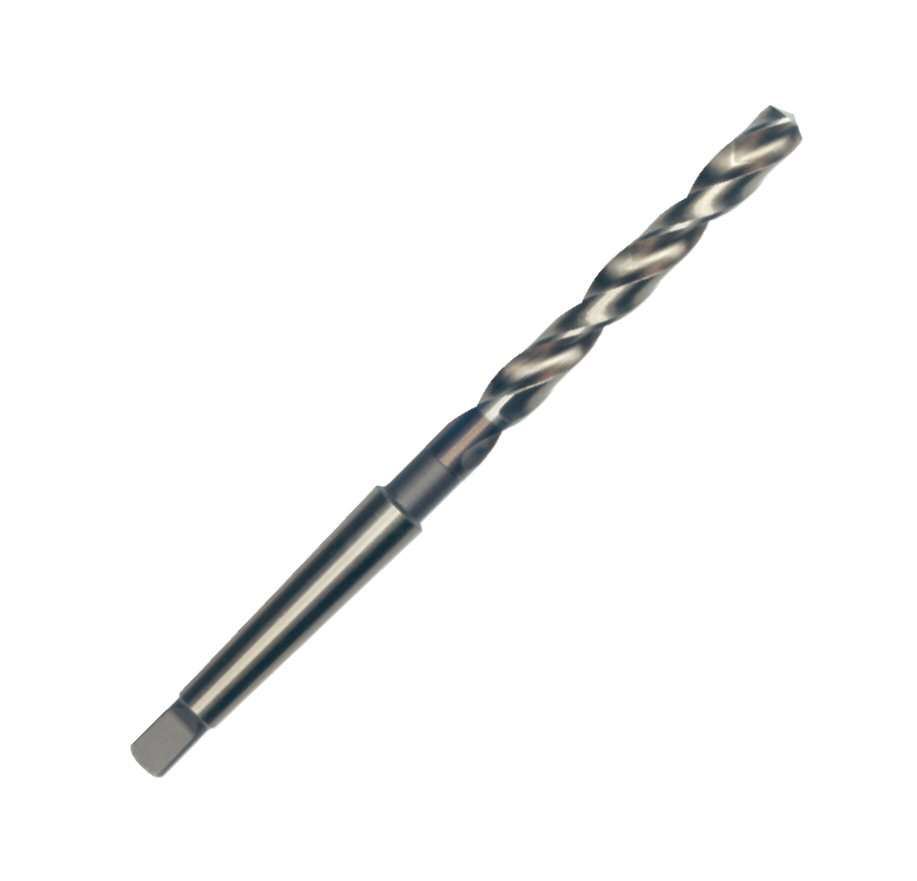

Presto 1111120.5 - 20.50mm HSCo8 DIN345 MORSE TAPER SHANK DRILL - DIN1412C SPLIT POINT

Heavy-duty drill made of 8% cobalt material with excellent heat resistance. To drill steels with tensile strength up to 1.400 N/mm2, very hard bronze, stainless steels as well as heat and acid resistant steels.

Design characteristics
Point grinding: cone relief point
Point angle: 135°
Web thinning: form C
Helix angle: high
Web thickness: strengthened
Web taper: strengthened
Flute form: normal
Tolerance of dia.: h8

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - £4.95

Weight 0.5 kg

RRP £0.00

Our Price (Inc VAT)

£0.00

Ex VAT £0.00

You Save £0.00!

Attribute Name	Value
Helix angle:	Normal
Barcode:	5011315041409
Overall Length:	243mm
Weight:	0.3799
Size:	20.50mm
Flute Length:	145mm
Commodity Code:	82075060
Cutting Direction:	Right Hand
Manufacturing Standard:	DIN345
Shank Diameter	MTS 2
Shank Type:	Morse Taper Shank
Point Type:	118° S/P
Finish Description:	Steam Tempered (Black Oxide)
Material Description:	Cobalt High Speed Steel
