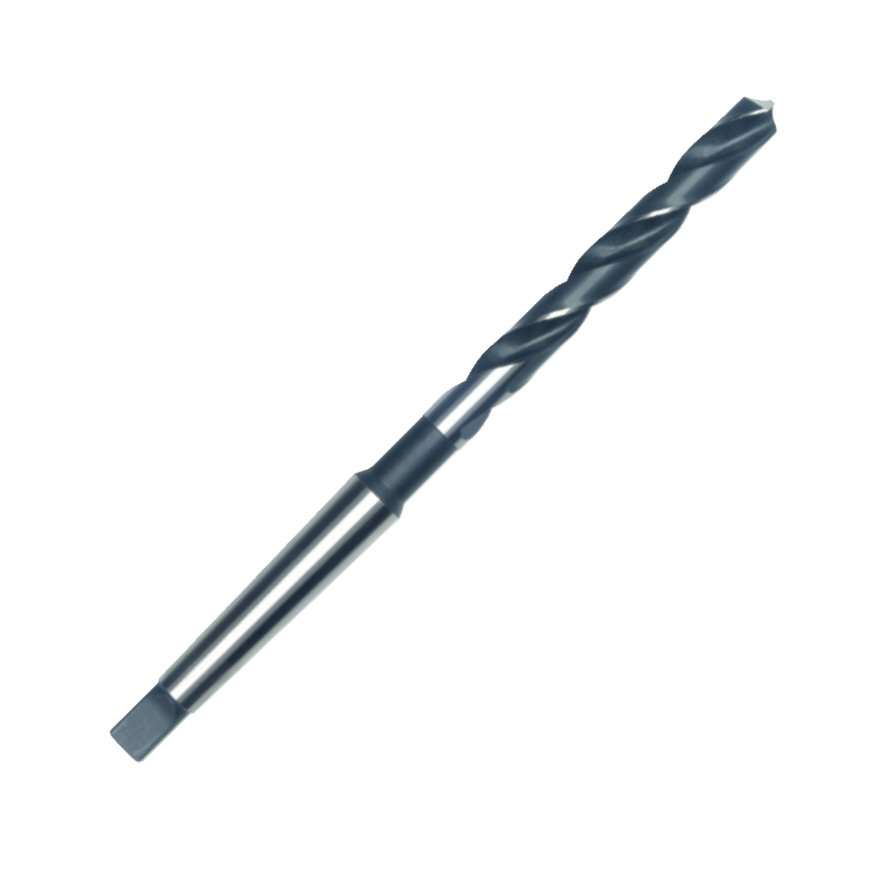

Presto 11000-3132 - 31/32" HSS DIN345 MORSE TAPER SHANK DRILL

General-purpose drill, to drill steels with tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.

Design characteristics
Point grinding: cone relief point
Point angle: 118°
Web thinning: form A > 14 mm
Helix angle: normal
Web thickness: normal
Web taper: normal
Flute form: normal
Tolerance of dia.: h8

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - FREE

Weight 0.5 kg

RRP £182.45

Our Price (Inc VAT)

£78.64

Ex VAT £65.53

You Save £103.81!

Attribute Name	Value
Helix angle:	Normal
Barcode:	5011315038980
Overall Length:	281mm
Weight:	0.6526
Size:	31/32"
Flute Length:	160mm
Commodity Code:	82075060
Cutting Direction:	Right Hand
Manufacturing Standard:	DIN345
Shank Diameter	MTS 3
Shank Type:	Morse Taper Shank
Point Type:	118°
Finish Description:	Steam Tempered (Black Oxide)
Material Description:	High Speed Steel
