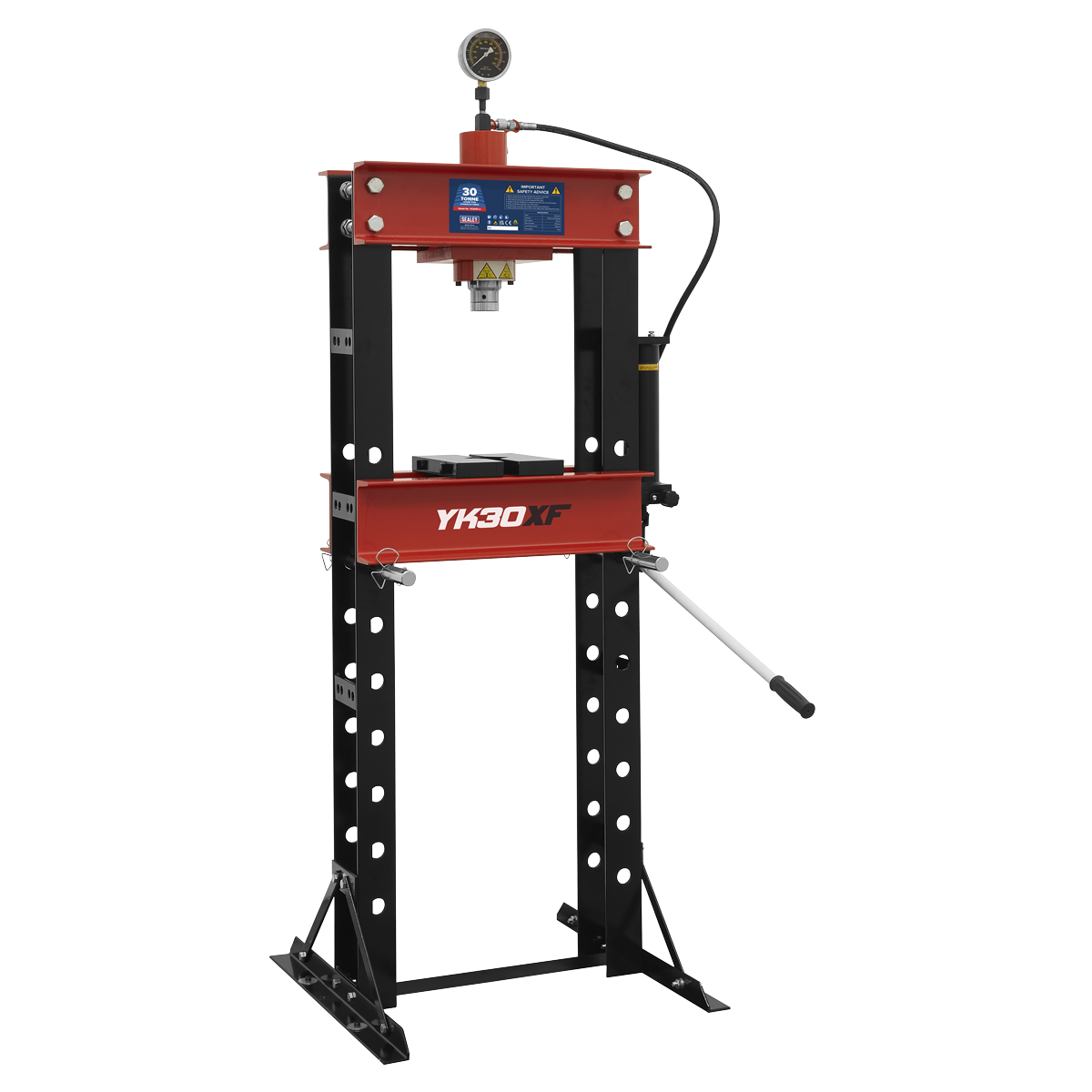

Sealey YK30XF - Hydraulic Press 30tonne Floor Type

• Steel frame construction with side mounted hydraulic pump unit.

• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.

• Includes flat pressing plate/V-blocks.

• Fitted with ram pressure gauge.

• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Additional Information:
Table Aperture: 154mm.
• Working Table Width: 460mm.
• Ram Stroke: 150mm.
• Overall Height: 1907mm.
• Steel frame construction with side mounted hydraulic pump unit.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Includes flat pressing plate/V-blocks.
• Fitted with ram pressure gauge.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. YK30XF

Compare Products

FREE UK Mainland delivery on orders over £75

UK Mainland individual delivery cost - FREE

Weight 140 kg

RRP £1079.94

Our Price (Inc VAT)

£950.35

Ex VAT £791.96

You Save £129.59!

Attribute Name	Value
Model No:	YK30XF
Capacity:	30tonne
Air Consumption:	-
Type:	Hydraulic
Overall Height:	1907mm
Working Pressure:	-
Weight:	141.5kg
Ram Stroke:	150mm
Table Aperture:	154mm
Working Table Width:	460mm
Gauge Included:	Yes
Lateral Ram Travel:	200mm
Warranty:	1 Year
Bench or Floor Mounting:	Floor
Maximum Height - Ram to Table:	1050mm
Minimum Height - Ram to Table:	60mm
Working Table Depth:	284mm
Barcode:	5051747912762
Ram Ø:	70mm
Safety Guard (Optional):	-
Current Sealey Catalogue page:	327
Current Product Version:	003
Brand:	Sealey
