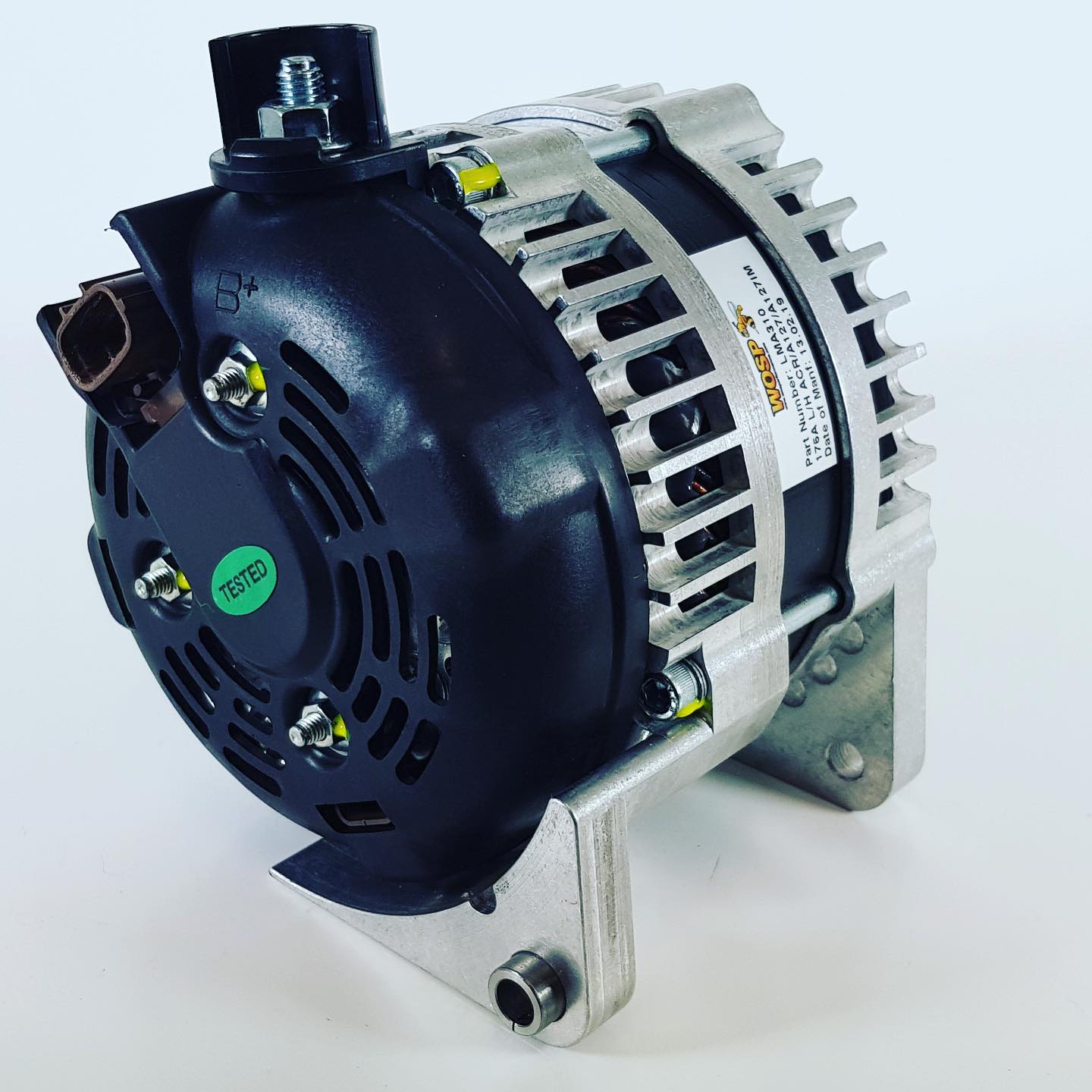

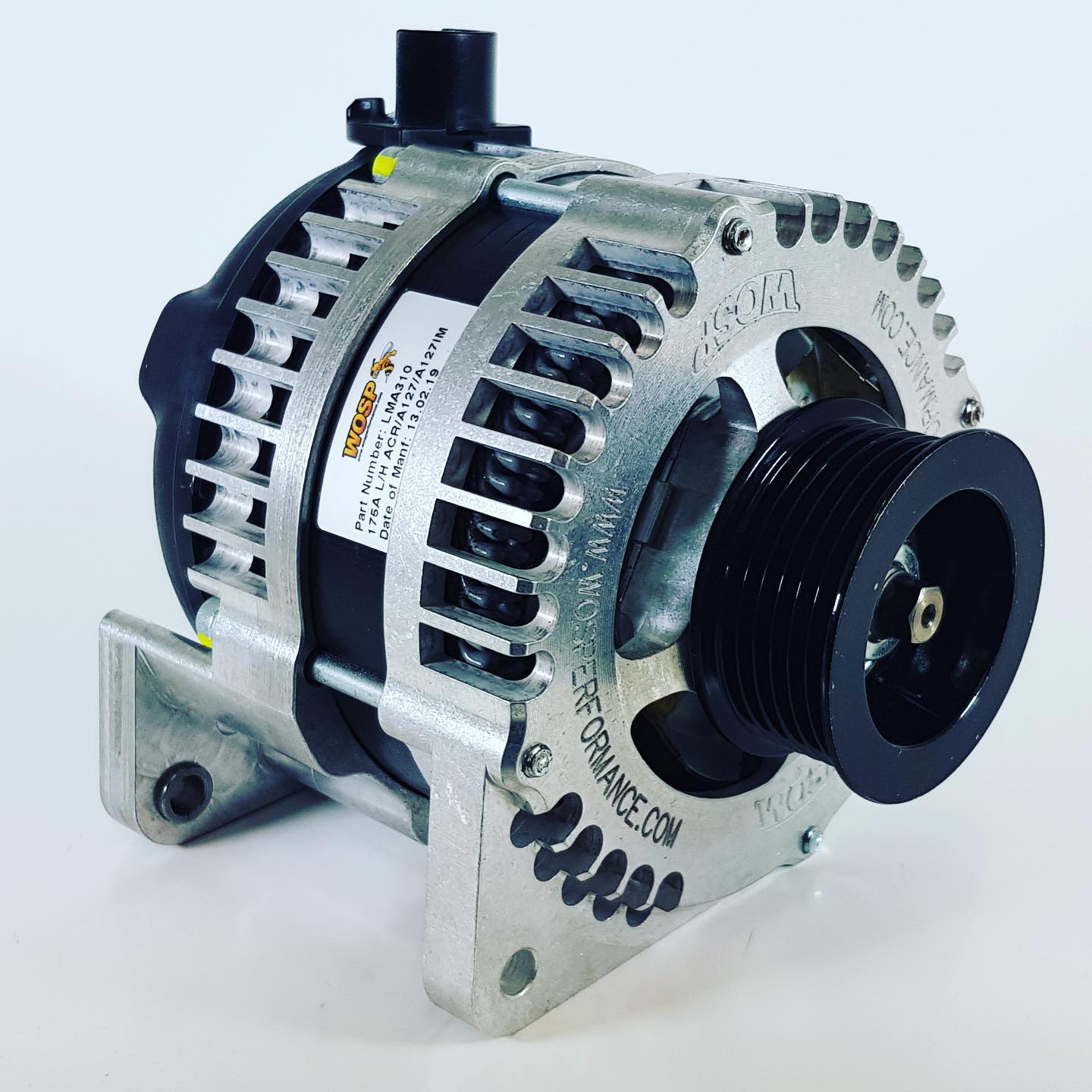

WOSP LMA310 - 175A Lucas type LH Mount Race Alternator

NEW SUPER EFFICIENT, HIGH OUTPUT AND ‘KERS’ ALTERNATORS

WOSP are proud to announce the release of a new range of super-efficient alternators to the market; our ‘300 series‘. These compact units offer the best power/weight ratio available and at far lower rpm than alternatives due to their patented efficient design which enables them to offer up to 80% of their maximum output @ average idle speeds catering for the large electrical loads usually found at this time. Over 20 units are available from 95A - 370A in 12v.

Our ‘TPS’ range of alternators are simple to install and enable the user to harness the power generated from our Kinetic Energy Recovery System. Our small external TPS controller can be easily mounted in a position where it can tap in to the throttle position sensor wires and also the brake light circuit/switch. Our TPS system charges the vehicles battery in a concentrated manner using the electrical power generated when the vehicle is coasting or decelerating. Under wide open throttle conditions the alternator removes all load from the engine enabling every ounce of BHP to be used for acceleration and not for generating electrical power.

Specification:
Output: 175A
Handing: L/H
Lugs: 3
*Units in standard form supplied with 2 x wiring connections - B+ & Lamp.
*Units in high output form ‘HO’ supplied in single wire hook-up - B+.
*TPS system has provision for Can Bus port for data acquisition.
*Units also available in 24 volt @ 1/2 amp output listed. Add suffix ‘24’ to part #.
*For a Lithium Ion option add suffix ‘LI’ to part #.
Increases charge voltage to suit the unique charging requirements of Lithium Ion batteries.
